Web service login integration

Are you curious about the actual usage flow?

Understanding

Web service login integration is a feature that allows you to integrate STOVE account login into web services such as official websites and event pages. Users can log in with their STOVE account without needing a separate account, and the web service verifies the login status using the issued authentication cookie (SUAT).

There are two integration methods. The GNB method, which inserts the STOVE common navigation into the web page, and the login URL method, which calls the STOVE login page directly. Choose the GNB method if you want to provide common UI elements like login, language, and theme, or the login URL method if you only want to integrate the login flow.

Integration Methods

Method	Use Case	Features
GNB Method	Web services that want to provide common UI elements such as sign-up, language, theme, and game navigation in addition to login	Inserts the STOVE common navigation module into the web page. (Provides responsive UI and custom options)
Login URL Method	Web services that want to integrate only the STOVE login flow without common UI	Calls the STOVE login page via URL and verifies authentication status via cookie upon completion

Application Environment

STOVE authentication can only be used on web services that meet domain requirements. If the service is configured with external infrastructure, an SSL certificate is required.

Item	Details
Domain Requirements	The target web service must use an `onstove.com` domain (e.g., `xxx.game.onstove.com`) to use STOVE authentication
SSL Certificate	If the web service is configured separately with external infrastructure, an SSL certificate must be issued and configured
Responsive Support	The GNB method provides a responsive UI that automatically adjusts the layout for PC, Tablet, and Mobile screens

Components

Components	Role
Web Service	Target services that integrate STOVE login, such as official websites and event pages.
GNB Module	`stove-gnb.js`. Mounted on the web page to provide common UI such as login, sign-up, language, theme, and game navigation.
STOVE Login Page	`accounts.onstove.com/login`. An authentication page called directly in the login URL method.
Authentication Cookie (SUAT)	STOVE User Access Token issued after login is complete. Used by the web service to identify the login status.
Publishing Technical Manager (Technical PM)	Domain connection, `game_no`·`inflow_path` issuance, SSL/firewall settings, and other preliminary preparations.

Operating Principle

The GNB method loads the GNB module onto the web page and mounts it to the specified element. The GNB provides common functions such as login/sign-up flows, language, and themes, and once login is complete, the STOVE authentication cookie is set. You can select only the necessary functions using service-specific custom areas and options without modifying the GNB itself.

The login URL method generates and calls a STOVE login page URL that includes game_no·inflow_path·redirect_url. When the user completes the login, they are redirected to the redirect_url, and the web service processes the login status by checking token information such as SUAT in the response cookie.

Integration Guide

Prerequisites

These are the common requirements for both methods. Detailed preparations for each method are provided in their respective [Development] tracks.

Item	Description	Note
Domain Connection	Connect the web service to use an `onstove.com` domain (e.g., `xxx.game.onstove.com`). Domain connection is handled by the Technical PM.	Required
Code Issuance	Obtain the `game_no` and inflow path code (`inflow_path`) required for the login URL method through the Technical PM.	Login URL method
SSL Certificate	If configuring the service with external infrastructure, SSL certificate issuance and configuration are required. Issuance is possible through a Technical PM.	For external infrastructure
Test Account	Secure an account that has completed Stove registration on the web for integration testing.	Required

Prior coordination with the responsible team is required before integration.
Domain connection, code issuance, firewall settings, etc., are handled through the publishing technical manager (Technical PM). Please share with the responsible team before starting integration. Inquiries: sgp_publishtech_d@smilegate.com

Domain Information by Environment

The domains used vary by method and environment. Integration testing should be conducted in Sandbox first before applying to Live.

Environment	GNB Module (stove-gnb.js)	Login Page
Live	https://js-cdn.onstove.com/libs/common-gnb/latest/stove-gnb.js	https://accounts.onstove.com
Sandbox	https://js-cdn.gate8.com/libs/common-gnb/latest/stove-gnb.js	https://accounts.gate8.com
QA	https://js-cdn-qa.onstove.com/libs/common-gnb/latest/stove-gnb.js	-
QA2	https://js-cdn-qa2.onstove.com/libs/common-gnb/latest/stove-gnb.js	-
Dev	https://js-cdn-dev.onstove.com/libs/common-gnb/latest/stove-gnb.js	-
Dev2	https://js-cdn-dev2.onstove.com/libs/common-gnb/latest/stove-gnb.js	-

Development

GNB Method

The GNB (Global Navigation Bar) is a common web navigation that provides shared features such as Stove account login/signup, language switching, and game navigation. You can select only the necessary features as service-specific options, and it provides a consistent experience on both PC and mobile with a responsive UI. The content below is based on the revamped GNB.

Prerequisites

The web service must have domain connection completed to use onstove.com series domains.
You must obtain the host address for the GNB module (stove-gnb.js) suitable for the environment. (See 환경별 도메인 안내)
You must prepare an element (e.g.,
) on the page to render the GNB.
If language/theme customization is required, you must pre-determine the service's language coverage and default language/theme policies.

Development Flow

After loading the GNB module, specify the element to render and call window.StoveGnb.mount() to mount the GNB. The UI changes automatically depending on the login status, and once login is complete, the Stove authentication cookie is set.

Load the GNB module (stove-gnb.js) suitable for the environment.
Pass the CSS selector of the element to render the GNB and the options object to window.StoveGnb.mount(selector, options).
The GNB is mounted, and common UI elements such as login, signup, language, and theme are rendered.
Since the timing of mount, language change, and theme change is delivered as GNB custom events, receive the necessary timing to connect service operations.
Once the user completes the login, the Stove authentication cookie is set, and the GNB UI automatically switches based on the login status.

mount() Parameters

window.StoveGnb.mount(selector, options) are the arguments passed to.

Parameter	Type	Description
`selector`	`string`	CSS selector of the element to render the GNB
`options`	`object`	Options object to configure GNB behavior

Key GNB Features

Use only the necessary features through service-specific options and partner settings. The default design changes automatically depending on the login status, and a bottom menu bar is provided on mobile.

Item	Content
Basic Design	UI automatically switches based on login status. Provides Sign-up/Login buttons when logged out, and Notification/My Info menus when logged in.
Basic Menu	Stove and Store menus are integrated. Exposure can be controlled via options.
Full Menu	Separates menus from the game list. Supports language and theme settings.
Favorites/My Info	Provides favorites and a list of popular games. Customer Center and Report Center have been moved to the Full Menu.
Mobile Support	Provides a bottom menu bar. Logo display method changes based on title settings.
Service GNB	Selectively use service name, notifications, language, theme, Stove installation button, etc.

Screen Preview

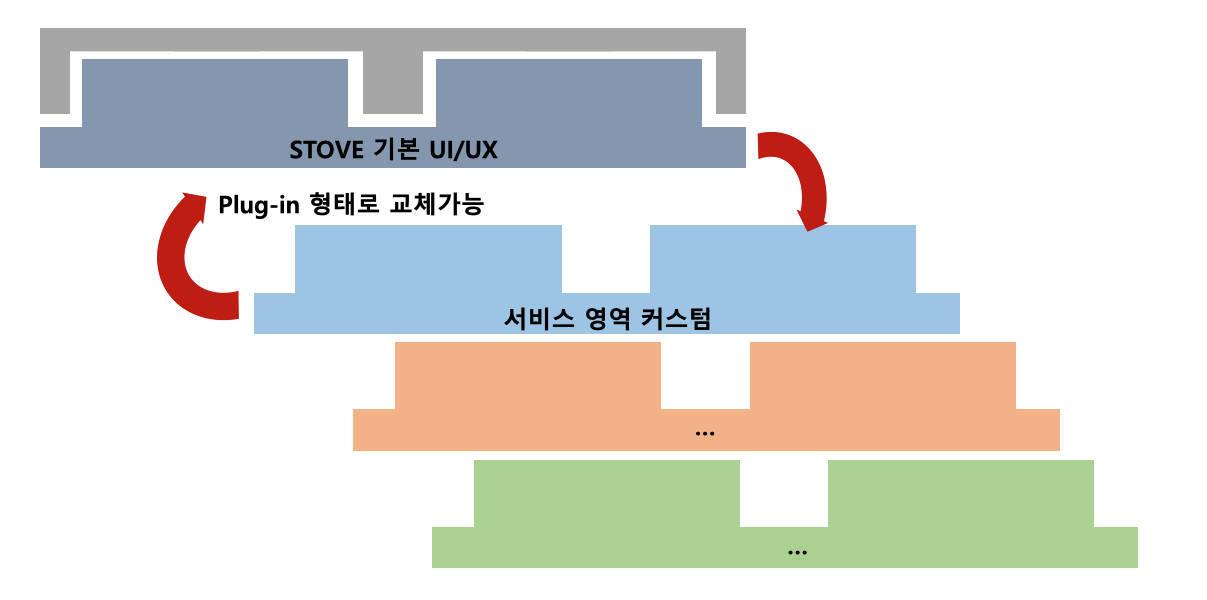

Requirements for each service are reflected in a separate custom area. You can extend the service UI without modifying or redeploying the GNB itself.

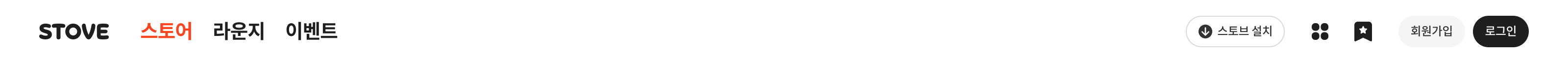

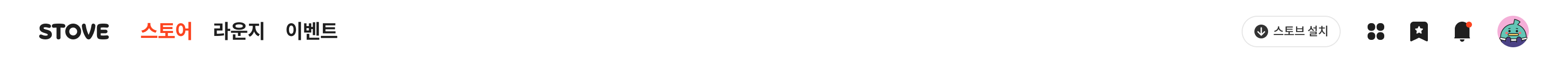

Basic Designautomatically changes based on login status. It provides Sign-up/Login buttons when logged out, and Notification/My Info menus when logged in.

Basic Menuis composed simply by integrating the Stove and Store menus.

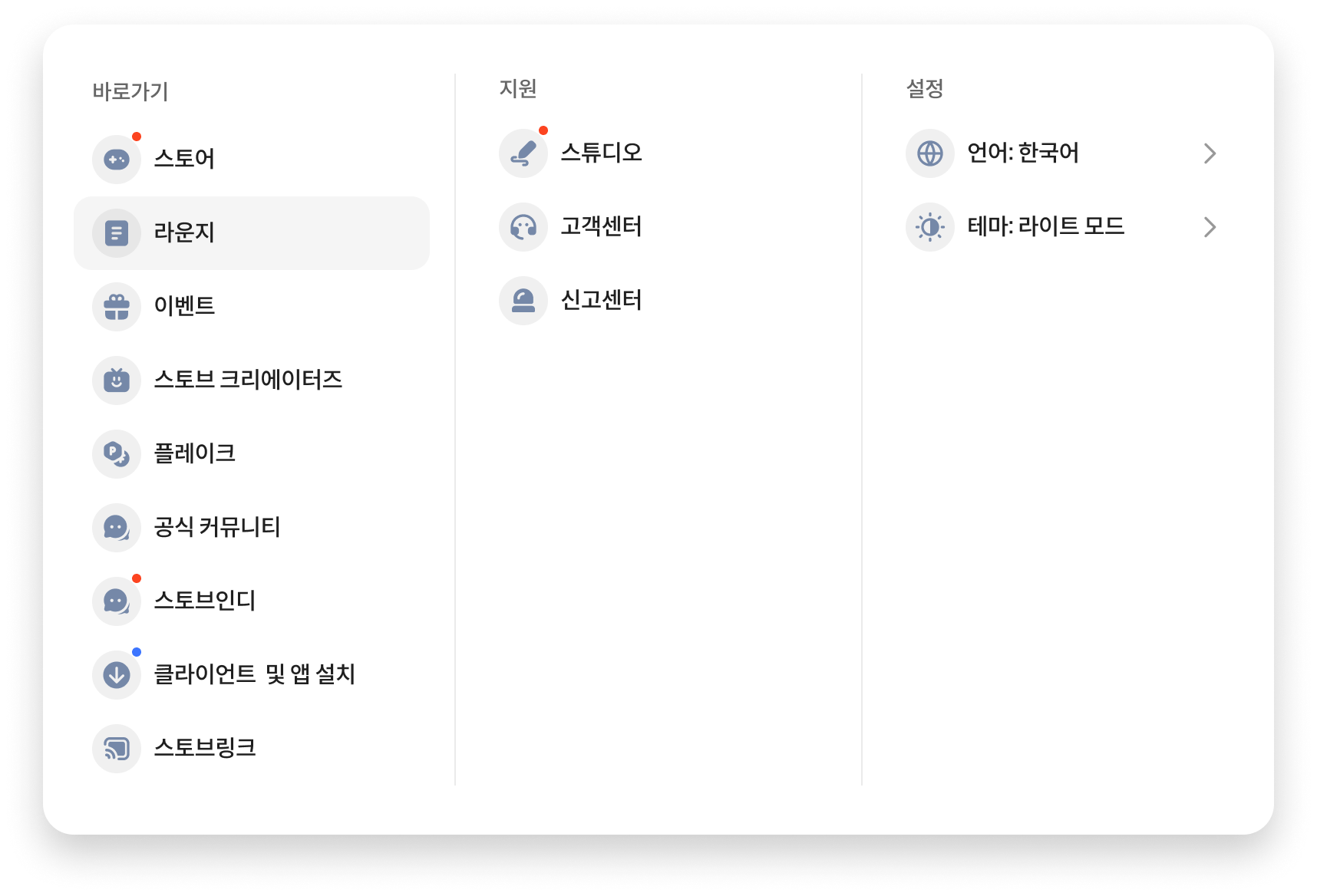

Full Menuseparates the game list from the menu and provides language and theme settings together.

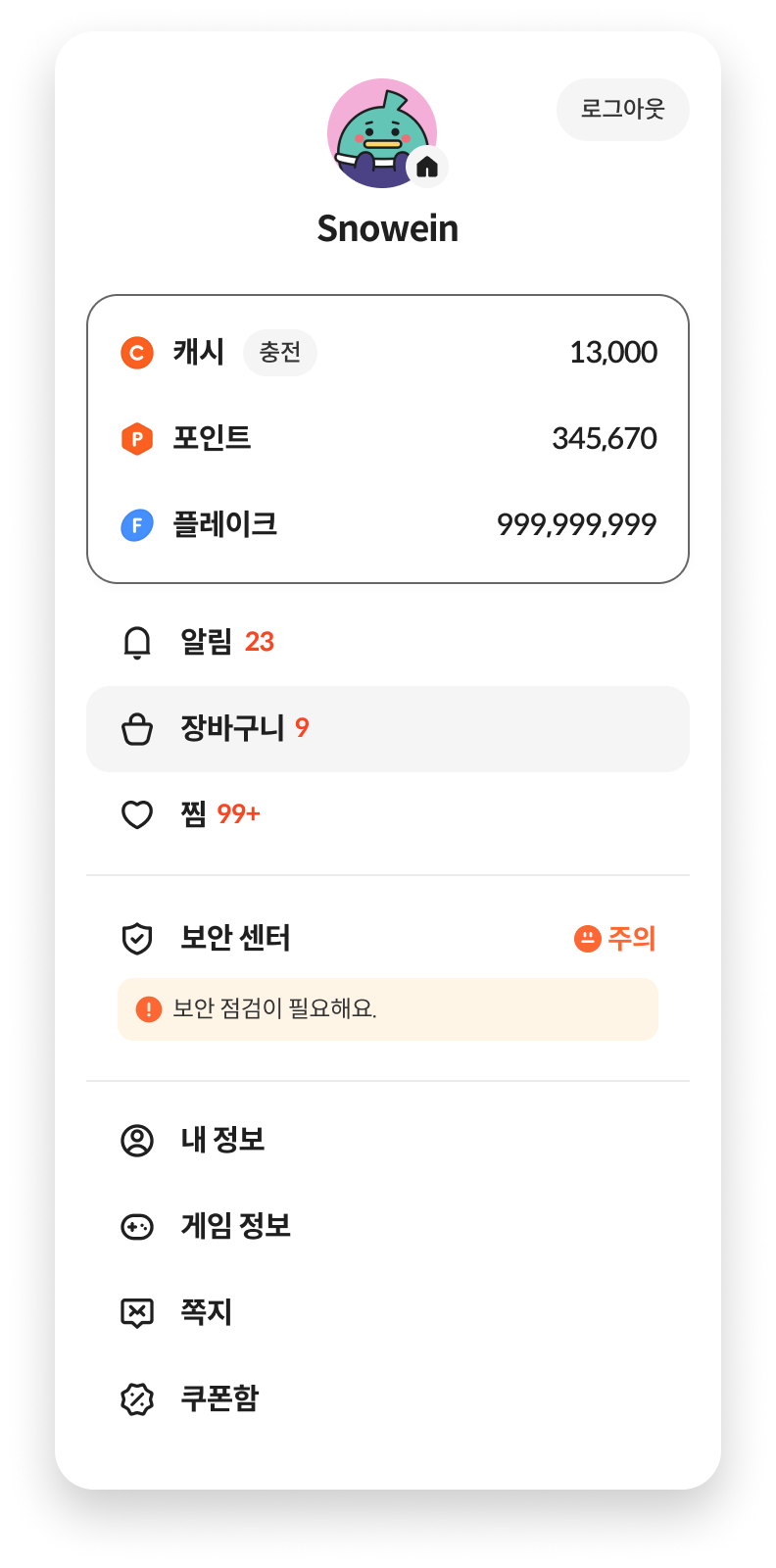

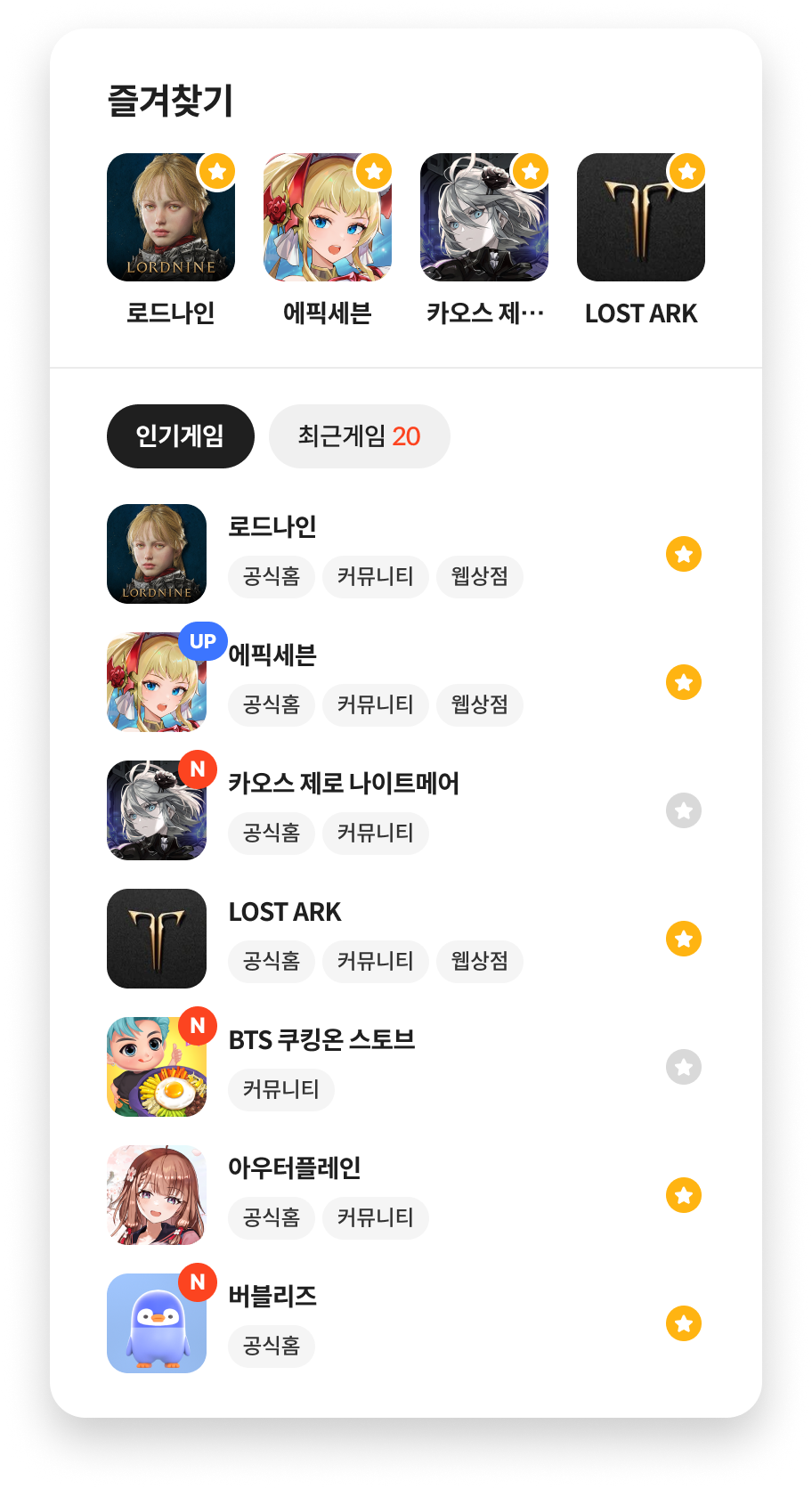

Favoritesprovides a favorites feature and a list of popular games, and My Infohas improved UI and moved the Customer Center and Report Center to the Full Menu.

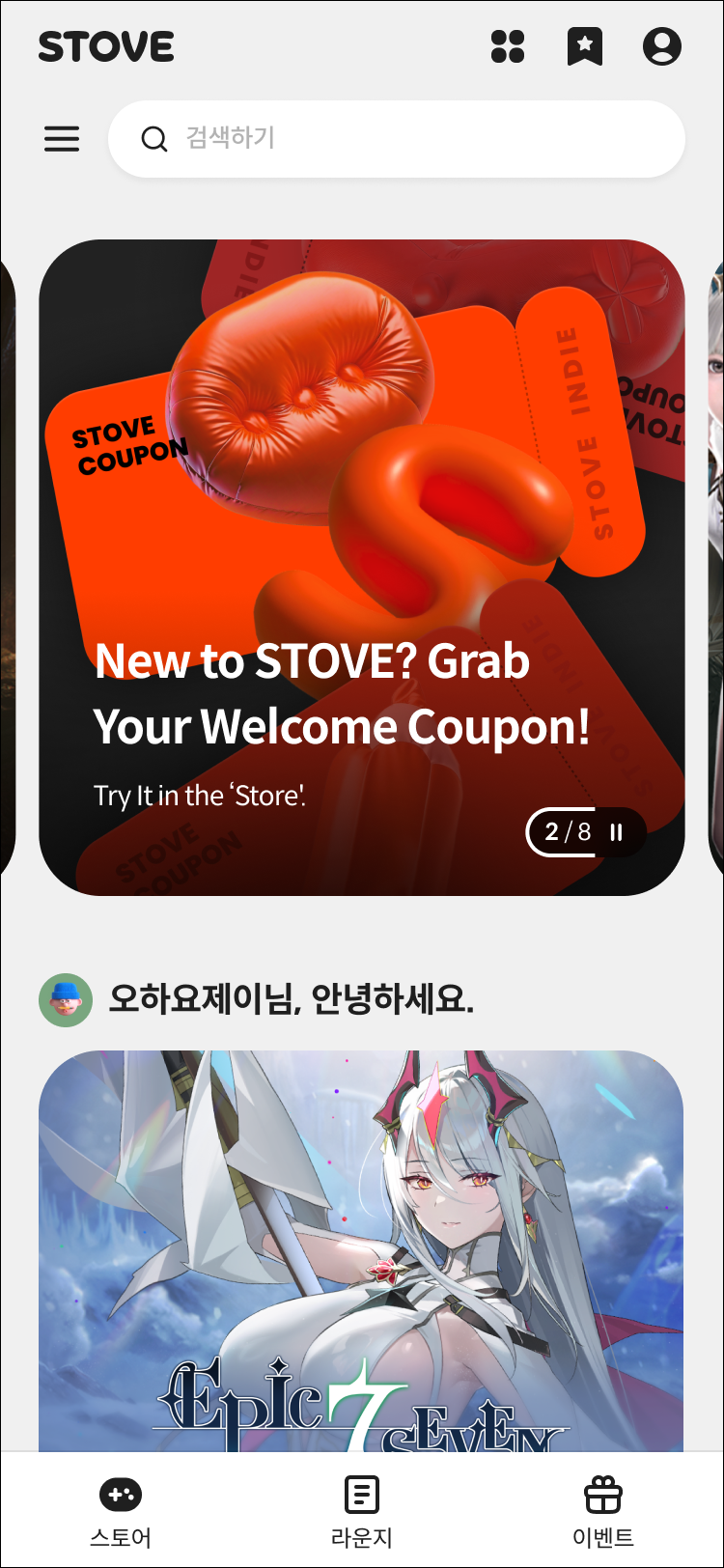

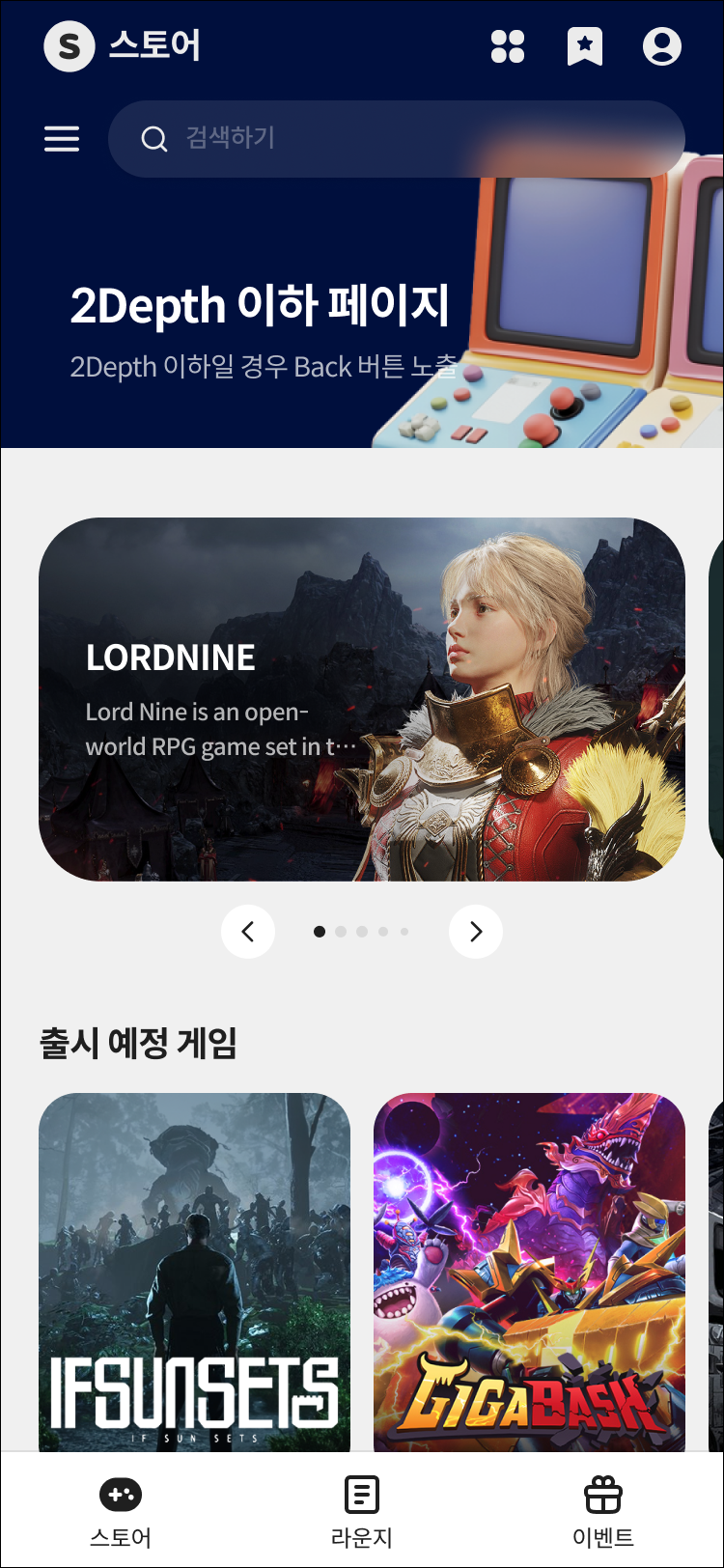

Mobileprovides a bottom menu bar, and the logo display method varies depending on whether a title is set. The left side shows the screen without a title, and the right side shows the screen with a title.

Service GNBprovides various options so it can be used outside of Stove services. Select only the necessary features according to the service characteristics. The top shows the default options, and the bottom shows the screen with service options applied.

Settings Location
ㆍ GNB Options: Set menu, language, theme, and title visibility
ㆍ Partners: Common GNB Management → Basic Menu Management / Full Menu Management / Popular Game Management

Language Policy

The GNB determines the display language based on the following priority. If a valid language is not found in the previous step, it moves to the next step.

Language information included in the URL path (e.g., https://event.onstove.com/ko) — useLanguageCodeFromPath option is true applied
Language information stored in cookie (LOCALE) — Redirects after lookup if there is no language in the URL path
Browser language — If there is no language information in the cookie, the server refers to Accept-Language, and the browser refers to navigator.language
Service default language — If a supported language is not found above, the default language defined in each front-end is used (English is the fallback for all web services)

GNB operates on the premise of a page refresh when changing languages
Even if you handle language changes with custom logic, the page must be refreshed for the GNB language settings to be properly applied. customChangeLanguage is set to true, when changing language, GNBYou can receive and handle custom events directly.

Example of language detection logicgetLangByPath · getLangByCookie · getNavigatorLang

This is an example of language detection by priority. Fill in the service language coverage (`langCoverage`) according to each service.```javascript // 1) URL 패스의 언어 const getLangByPath = () => { const langCoverage = []; // 서비스 언어 커버리지 const lang = window.location.pathname.split('/')[1]; if (!lang) return null; const lowerCaseLang = lang.toLowerCase(); return langCoverage.some((c) => c === lang) ? lowerCaseLang : null; };

// 2) LOCALE cookie language (when there is no language in the URL path) const getLangByCookie = () => { const GNBLanguageCoverage = ; // GNB service language coverage const lang = Cookies.get('LOCALE'); // Use external library for cookie lookup if (!lang) return null; const lowerCaseLang = lang.toLowerCase(); return GNBLanguageCoverage.includes(lowerCaseLang) ? lowerCaseLang : null; };

// 3) Browser language (when not in cookies either) const getNavigatorLang = () => { const lang = window.navigator.language; return lang.startsWith('zh') ? lang : lang.replace(/-\S+/g, ''); };


</div>
</details>

<p style="color:#314158;font-family:'Spoqa Han Sans Neo';font-size:16px;font-weight:400;line-height:26px;letter-spacing:-0.48px;"><code>customChangeLanguage</code>를 <code>true</code>로 두면 언어 변경 시 쿠키를 바꾼 뒤 <code>change-language</code> 이벤트를 전달해요. <code>false</code>(기본)면 쿠키를 바꾼 뒤 <code>useLanguageCodeFromPath</code>가 <code>true</code>면 URL 언어 패스를 바꿔 이동하고, 아니면 페이지를 새로고침해요. 이벤트 처리 예시는 아래 [샘플 코드]의 이벤트 수신 탭을 참고해요.</p>

<div style="font-size:1.0em;font-weight:bold;margin:24px 0 12px;">옵션</div>

<p style="color:#314158;font-family:'Spoqa Han Sans Neo';font-size:16px;font-weight:400;line-height:26px;letter-spacing:-0.48px;"><code>mount()</code>에 전달하는 옵션이에요. 서비스에 필요한 옵션만 선택해 지정해요.</p>

<table style="width:100%;table-layout:fixed;border-collapse:collapse;border-top:1px solid rgba(0,0,0,0.08);border-bottom:1px solid rgba(0,0,0,0.08);">
  <thead>
    <tr>
      <th style="padding:12px;text-align:left;font-weight:normal;color:#314158;border-bottom:1px solid rgba(0,0,0,0.08);background-color:#F8FAFC;width:26%;">옵션</th>
      <th style="padding:12px;text-align:left;font-weight:normal;color:#314158;border-bottom:1px solid rgba(0,0,0,0.08);background-color:#F8FAFC;width:10%;">필수</th>
      <th style="padding:12px;text-align:left;font-weight:normal;color:#314158;border-bottom:1px solid rgba(0,0,0,0.08);background-color:#F8FAFC;width:16%;">기본값</th>
      <th style="padding:12px;text-align:left;font-weight:normal;color:#314158;border-bottom:1px solid rgba(0,0,0,0.08);background-color:#F8FAFC;">설명</th>
    </tr>
  </thead>
  <tbody>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>logArea</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">필수</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">""</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">로그 수집용 로그 영역. 서비스 메인 주소를 기입 (예: <code>https://store.onstove.com</code>)</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>useLanguageCodeFromPath</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">선택</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">false</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;"><code>true</code> 시 URL Path의 언어코드를 감지해 언어 설정</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>serviceTitle.pc / .mobile</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">선택</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">""</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">스토브 로고 우측 서비스 타이틀 (HTML string). PC·모바일 개별 지정</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>widget.notification</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">선택</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">true</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">알림 노출 여부</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>widget.stoveDownload</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">선택</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">false</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">스토브 설치 버튼 노출 여부</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>widget.languageSelect</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">선택</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">true</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">언어 선택 노출 여부</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>widget.themeSelect</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">선택</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">true</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">테마 선택 노출 여부</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>widget.stoveMenu.active / .mobile</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">선택</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">false / true</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">기본 메뉴 노출 여부. <code>mobile</code>은 <code>active=true</code>일 때만 적용</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>global.languageCoverages</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">Select</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">['en','zh-cn','zh-tw','ja','ko']</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">List of languages to display as language buttons. If the default language (en) is missing, it will be added automatically.</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>global.defaultSelectedLanguage</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">Select</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">'en'</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">The default language selected when no other language is available according to language policy.</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>global.customChangeLanguage</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">Select</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">false</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;"><code>true</code> Send custom event after changing language</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>loginMethod.redirectCurrentPage</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">Select</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">true</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">Redirect location after login. <code>true</code> is the current page, <code>false</code> is the account domain default page</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>mode.theme.support / .default</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">Select</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">["light"] / "light"</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">List of supported themes and the default theme. Specify a combination of <code>light</code>·<code>dark</code></td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>mode.mini</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">Select</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">false</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">Whether to use the mini version (reduced vertical width, 48px height)</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>mode.layout</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">Select</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">"wide"</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">Layout mode. <code>wide</code> / <code>fix</code></td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>mode.fixed</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">Select</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">true</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">Whether to fix the top. If fixed, the GNB remains at the top during scrolling.</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;color:#314158;font-size:14px;font-weight:500;"><code>userMenu.coupon</code></td>
      <td style="padding:12px;vertical-align:top;color:#314158;font-size:14px;font-weight:400;">Select</td>
      <td style="padding:12px;vertical-align:top;color:#314158;font-size:14px;font-weight:400;">true</td>
      <td style="padding:12px;vertical-align:top;color:#314158;font-size:14px;font-weight:400;">Whether to display the coupon box in the user info menu</td>
    </tr>
  </tbody>
</table>

<div style="font-size:1.0em;font-weight:bold;margin:24px 0 12px;">Option Preview</div>

<p style="color:#314158;font-family:'Spoqa Han Sans Neo';font-size:16px;font-weight:400;line-height:26px;letter-spacing:-0.48px;">These are actual display examples of major options.</p>

<p style="color:#314158;font-family:'Spoqa Han Sans Neo';font-size:14px;font-weight:500;margin-bottom:4px;"><code>serviceTitle</code> — Service title to the right of the Stove logo (PC / Mobile)</p>
<img src="https://d2x8kymwjom7h7.cloudfront.net/live/application_no/STATIC/developer-center/WEB/ko_web_gnb_img_pc_title.png" width="600">
<img src="https://d2x8kymwjom7h7.cloudfront.net/live/application_no/STATIC/developer-center/WEB/ko_web_gnb_img_mobile_title.png" width="450">

<div style="margin-top:12px;"></div>

<p style="color:#314158;font-family:'Spoqa Han Sans Neo';font-size:14px;font-weight:500;margin-bottom:4px;"><code>widget</code> — Notifications / Install Stove / Language Selection / Theme Selection</p>
<img src="https://d2x8kymwjom7h7.cloudfront.net/live/application_no/STATIC/developer-center/WEB/ko_web_gnb_img_alert_menu.png" width="75">
<img src="https://d2x8kymwjom7h7.cloudfront.net/live/application_no/STATIC/developer-center/WEB/ko_web_gnb_img_stove_download.png" width="150">
<img src="https://d2x8kymwjom7h7.cloudfront.net/live/application_no/STATIC/developer-center/WEB/ko_web_gnb_img_lang_menu_btn.png" height="375">
<img src="https://d2x8kymwjom7h7.cloudfront.net/live/application_no/STATIC/developer-center/WEB/ko_web_gnb_img_theme_menu_btn.png" height="375">

<div style="margin-top:12px;"></div>

<p style="color:#314158;font-family:'Spoqa Han Sans Neo';font-size:14px;font-weight:500;margin-bottom:4px;"><code>widget.stoveMenu</code> — Basic menu (PC / Mobile)</p>
<img src="https://d2x8kymwjom7h7.cloudfront.net/live/application_no/STATIC/developer-center/WEB/ko_web_gnb_img_stove_menu.png" width="1000">
<img src="https://d2x8kymwjom7h7.cloudfront.net/live/application_no/STATIC/developer-center/WEB/ko_web_gnb_img_stove_menu_mobile.png" height="500">

<div style="margin-top:12px;"></div>

<p style="color:#314158;font-family:'Spoqa Han Sans Neo';font-size:14px;font-weight:500;margin-bottom:4px;"><code>global.languageCoverages</code> / <code>mode.theme</code> — Language List / Theme Settings Popup</p>
<img src="https://d2x8kymwjom7h7.cloudfront.net/live/application_no/STATIC/developer-center/WEB/ko_web_gnb_img_lang_select_menu.png" height="225">
<img src="https://d2x8kymwjom7h7.cloudfront.net/live/application_no/STATIC/developer-center/WEB/ko_web_gnb_img_theme_popup.png" height="225">

<div style="margin-top:12px;"></div>

<p style="color:#314158;font-family:'Spoqa Han Sans Neo';font-size:14px;font-weight:500;margin-bottom:4px;"><code>mode.layout</code> / <code>userMenu.coupon</code> — Layout / My Info Coupon Box</p>
<img src="https://d2x8kymwjom7h7.cloudfront.net/live/application_no/STATIC/developer-center/WEB/ko_web_gnb_img_layout.png" height="375">
<img src="https://d2x8kymwjom7h7.cloudfront.net/live/application_no/STATIC/developer-center/WEB/ko_web_gnb_img_userMenu.png" height="375">

<div style="font-size:1.0em;font-weight:bold;margin:24px 0 12px;">Theme Option Details</div>

<p style="color:#314158;font-family:'Spoqa Han Sans Neo';font-size:16px;font-weight:400;line-height:26px;letter-spacing:-0.48px;">Set the list of themes supported by the service and the default theme using <code>mode.theme</code>. Configure it as shown below according to the supported combinations.</p>

```javascript
// 다크·라이트 모두 지원
mode: {
    theme: {
        support: ["dark", "light"],
        default: "dark"   // default는 서비스 기획에 따라 설정
    }
}

// 다크만 지원
mode: { theme: { support: ["dark"], default: "dark" } }

// 라이트만 지원
mode: { theme: { support: ["light"], default: "light" } }

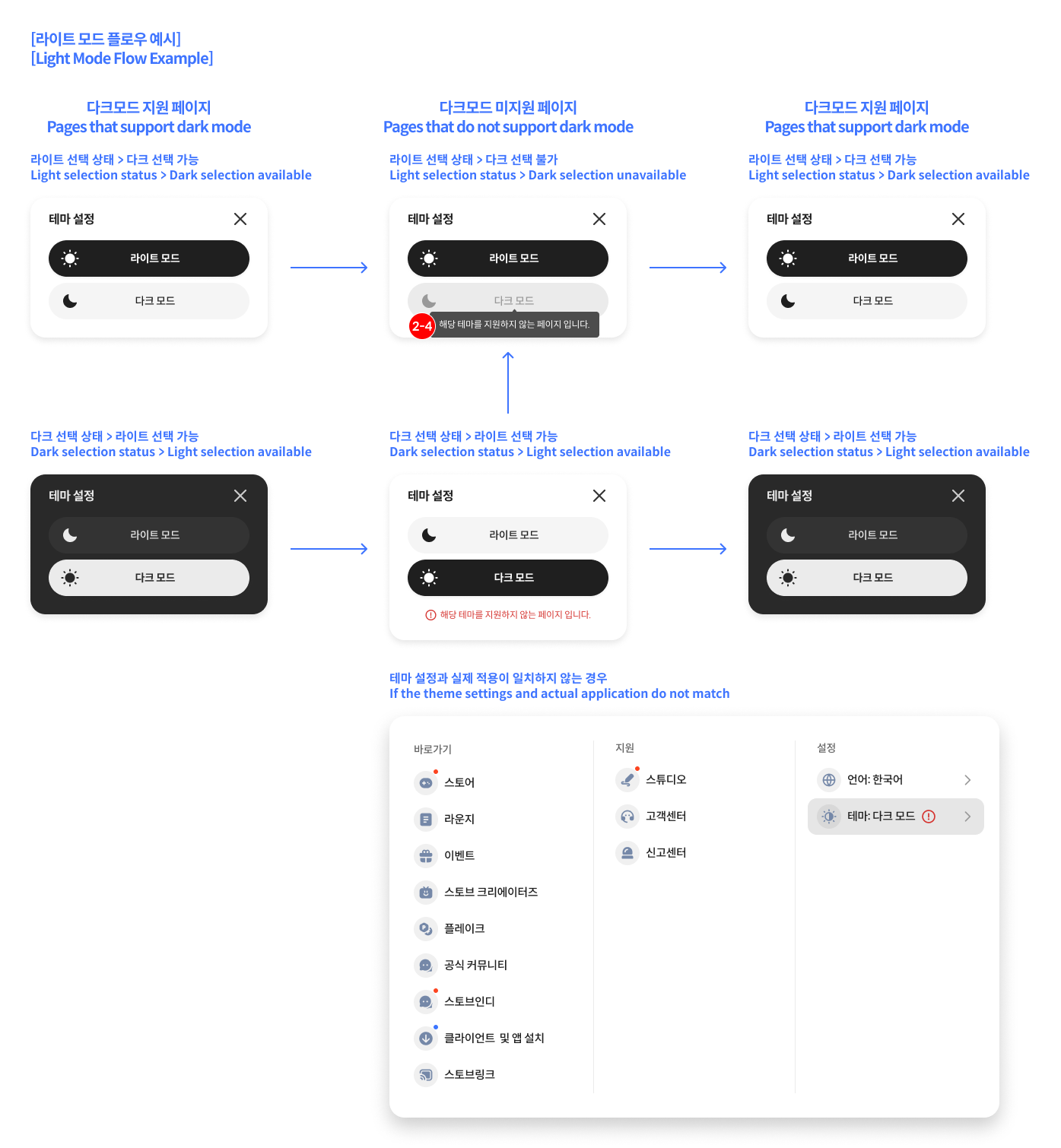

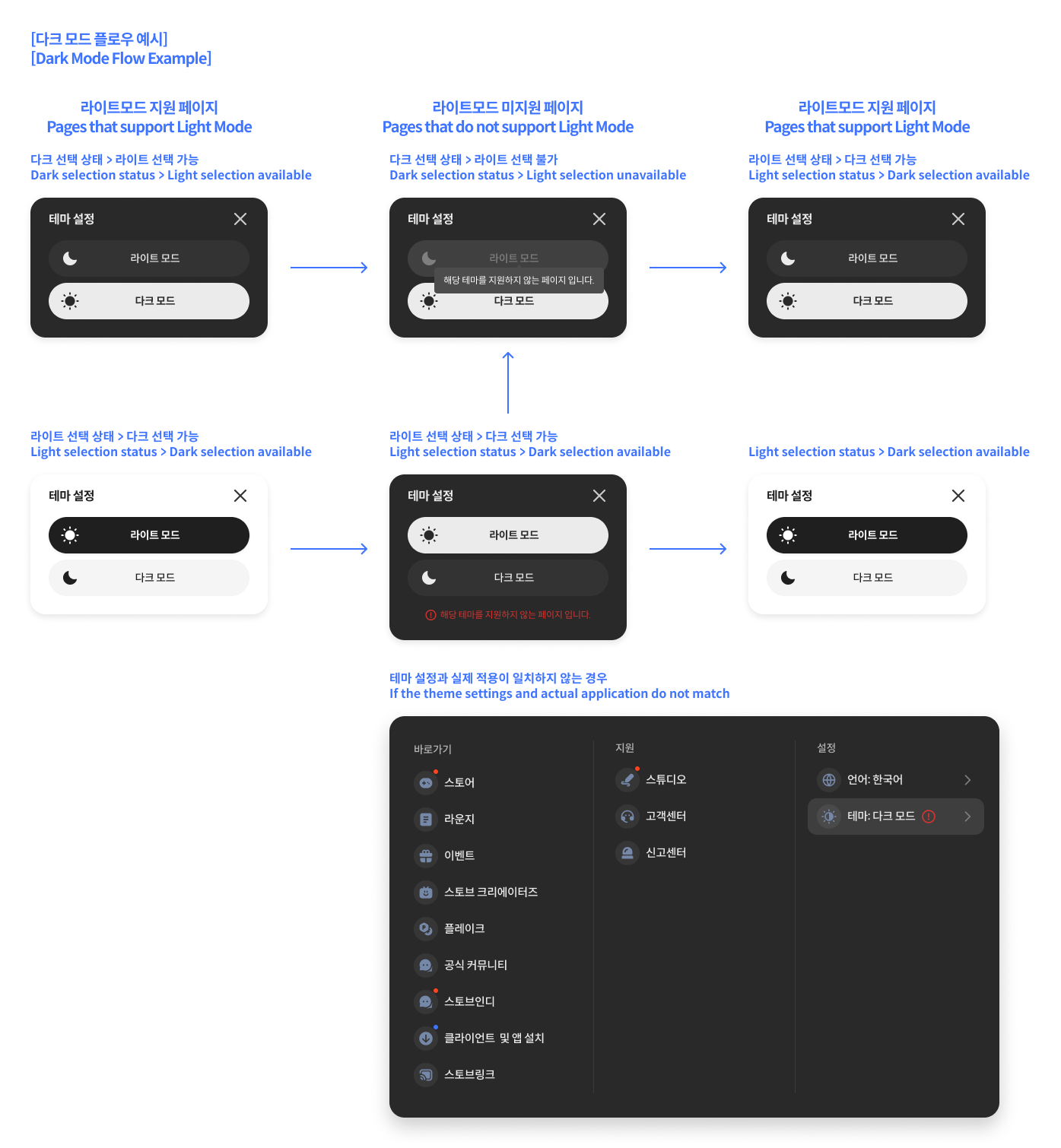

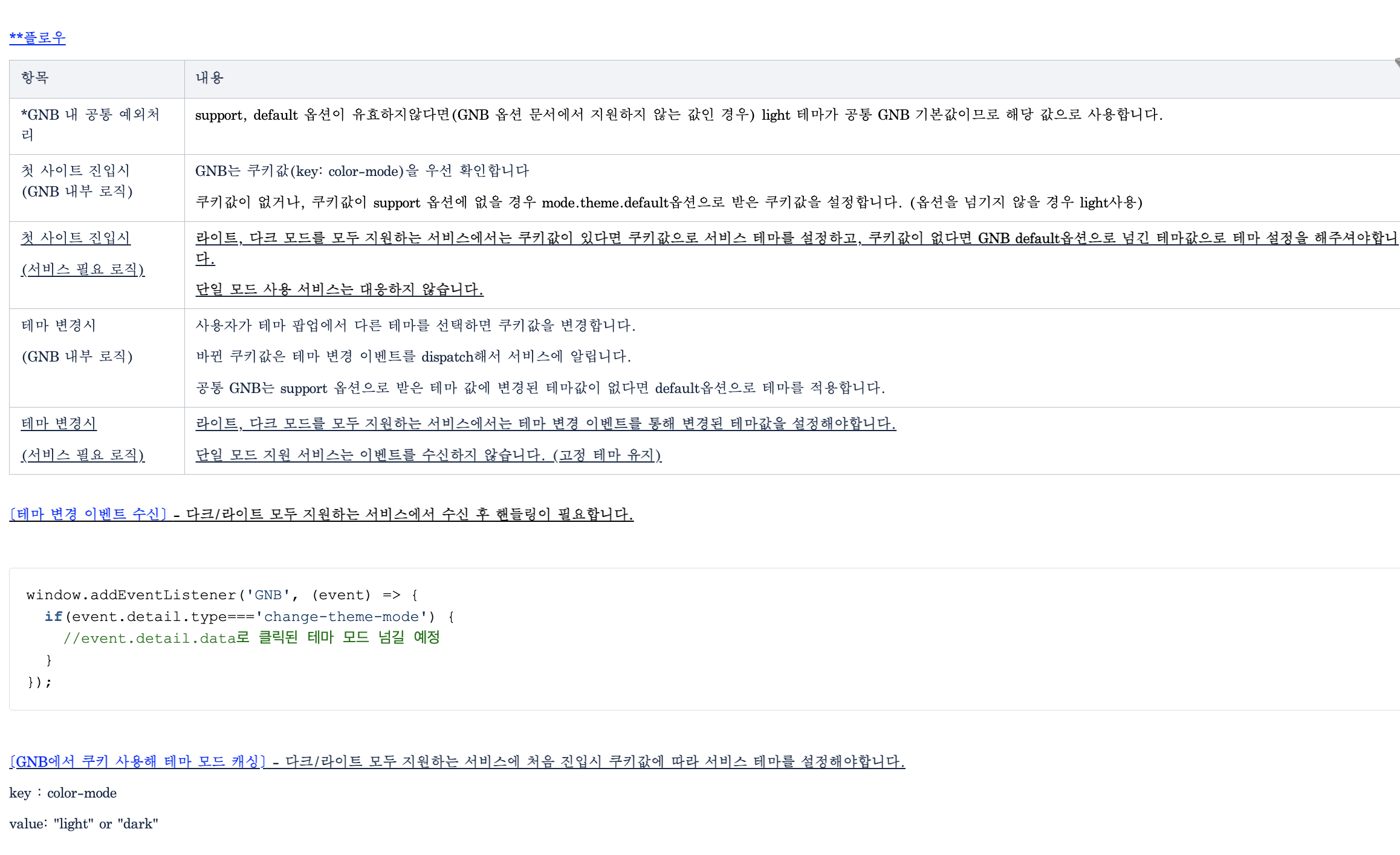

This is the theme application flow based on the presence of theme cookies and the support list (support).

Custom Areas and Runtime Changes

The GNB menu area can only be extended within the designated custom area (customMenuArea). Disable the default menu (widget.stoveMenu.active=false) and receive the mount event delivered by the GNB to render the service menu directly. Customization is not supported outside of the custom area.

mount() You can change options during runtime using updateOptions() of the GNB instance provided as the return value of . Runtime changes only apply to serviceTitle and widget.stoveMenu, and other options are ignored.

!infoIdentify the custom timing with mount events
ㆍ mounted: Delivered when the GNB 1depth container is mounted. You can customize customMenuArea.
ㆍ menu-mounted: Delivered when the skeleton of the GNB 1depth menu area is turned off and exposed.

Troubleshooting

Situation	Cause	Action
GNB does not render	`mount()` called before module load or incorrect selector	Call `onload` after module `mount()` and check the selector of the rendering element.
Login/Authentication does not work	Web service is not an allowed domain (`onstove.com` family)	Check the domain connection status and contact the technical PM.
Language change is not reflected	Custom processing without page refresh	Refresh the page after changing the language or check the `customChangeLanguage` event flow.
Custom menu area is empty	Accessing the custom area before the mount event	After receiving the `mounted` / `menu-mounted` event`customMenuArea`Use .
Runtime option changes not applied	Attempted to change unsupported runtime options	Runtime changes are `serviceTitle`·`widget.stoveMenu`supported only.

Sample Code

This is an example of loading the GNB module, mounting it with options, and receiving mount, language, and theme events. Please apply the module host address according to your environment.

=== "Option Integration"

<div id="stove-gnb-wrapper"></div>
<script defer>
    (function () {
        const script = document.createElement('script');
        script.src = 'https://js-cdn.onstove.com/libs/common-gnb/latest/stove-gnb.js'; // 환경별 적용 필요
        script.onload = () => {
            if (window.StoveGnb) {
                window.StoveGnb.mount('#stove-gnb-wrapper', {
                    logArea: 'https://도메인주소를입력해주세요',
                    useLanguageCodeFromPath: true, // URL 언어 패스 미사용 시 false
                    serviceTitle: {
                        pc: '',
                        mobile: '서비스 타이틀(모바일)'
                    },
                    widget: {
                        stoveMenu: {
                            active: true, // 기본 메뉴 비활성화 시 false
                            mobile: true
                        }
                    }
                });
            }
        };
        document.body.appendChild(script);
    })();
</script>

=== "Event Reception"

<div id="stove-gnb-wrapper"></div>
<script defer>
    (function () {
        const script = document.createElement('script');
        script.src = 'https://js-cdn.onstove.com/libs/common-gnb/latest/stove-gnb.js'; // 환경별 적용 필요
        script.onload = () => {
            if (window.StoveGnb) {
                const gnbEventHandler = (event) => {
                    if (event.detail.type === 'mounted') {
                        // 마운트 이벤트 수신: customMenuArea 커스텀
                        const area = document.getElementById('customMenuArea');
                    }
                    if (event.detail.type === 'change-language') {
                        // 언어 변경 이벤트 수신
                    }
                    if (event.detail.type === 'change-theme-mode') {
                        // 테마 변경 이벤트 수신
                    }
                };
                window.removeEventListener('GNB', gnbEventHandler);
                window.addEventListener('GNB', gnbEventHandler);

                window.StoveGnb.mount('#stove-gnb-wrapper', {
                    logArea: 'https://도메인주소를입력해주세요'
                    // 언어·테마 변경 옵션이 활성화되어 있어야 이벤트가 전달돼요
                });
            }
        };
        document.body.appendChild(script);
    })();
</script>

=== "Runtime Option Changes"

// mount()의 반환 인스턴스로 런타임 중 옵션 변경
const mountedInstance = window.StoveGnb.mount('#stove-gnb-wrapper', { /* GNB 옵션 */ });

// serviceTitle, widget.stoveMenu만 런타임 적용
mountedInstance.gnb.updateOptions({
    serviceTitle: {
        pc: '',
        mobile: ''
    },
    widget: {
        stoveMenu: {
            active: true,
            mobile: true
        }
    }
});

### Login URL Method

This method involves integrating the Stove login page directly without using the GNB. The web service generates and calls the login page URL, and handles account login using cookies (token, country, language information, etc.) issued after login is complete.

Prerequisites

The web service (official website) domain must be in the form of xxx.game.onstove.com to use Stove authentication.
If you are configuring external infrastructure separately, you must issue and set up an SSL certificate. (Issued by Technical PM)
You must obtain inflow_path and game_no for identifying the entry path through the Technical PM.
You must have an account with Stove registration completed on the web for integration testing.

Development Flow

Generate and call the Stove login page URL including parameters, and once login is complete, redirect to redirect_url. The web service checks for tokens such as SUAT in the response cookies to process the login status.

game_no·inflow_path·redirect_url are specified as query parameters to generate the Stove login page URL. redirect_url must be URL-encoded. 2. Call the generated login page URL. 3. The user completes the login on the Stove login page. 4. After the login is complete, the user is redirected to the redirect_url and an authentication cookie is set. 5. The web service checks the SUAT(Web Access Token) in the cookie to process the login status. ```mermaid sequenceDiagram autonumber participant U as 사용자 participant W as Web Service participant L as 스토브 로그인 페이지 W->>W: 로그인 URL 생성 (game_no, inflow_path, redirect_url) W->>L: 로그인 페이지 URL 호출 U->>L: 스토브 계정 로그인 L-->>W: redirect_url 이동 + 인증 쿠키(SUAT 등) 설정 W->>W: 쿠키에서 SUAT 확인 후 로그인 상태 처리


<div style="font-size:1.0em;font-weight:bold;margin:24px 0 12px;">Request Parameters</div>

<table style="width:100%;table-layout:fixed;border-collapse:collapse;border-top:1px solid rgba(0,0,0,0.08);border-bottom:1px solid rgba(0,0,0,0.08);">
  <thead>
    <tr>
      <th style="padding:12px;text-align:left;font-weight:normal;color:#314158;border-bottom:1px solid rgba(0,0,0,0.08);background-color:#F8FAFC;width:20%;">Parameter</th>
      <th style="padding:12px;text-align:left;font-weight:normal;color:#314158;border-bottom:1px solid rgba(0,0,0,0.08);background-color:#F8FAFC;width:12%;">Required</th>
      <th style="padding:12px;text-align:left;font-weight:normal;color:#314158;border-bottom:1px solid rgba(0,0,0,0.08);background-color:#F8FAFC;width:26%;">Example</th>
      <th style="padding:12px;text-align:left;font-weight:normal;color:#314158;border-bottom:1px solid rgba(0,0,0,0.08);background-color:#F8FAFC;">Description</th>
    </tr>
  </thead>
  <tbody>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>game_no</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">Required</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">45</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">Game number issued upon entry</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>inflow_path</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">Required</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">STOVE_GAMEID (Uppercase)</td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">User inflow path identifier. Issued via technical PM when entering Stove</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;color:#314158;font-size:14px;font-weight:500;"><code>redirect_url</code></td>
      <td style="padding:12px;vertical-align:top;color:#314158;font-size:14px;font-weight:400;">Required</td>
      <td style="padding:12px;vertical-align:top;color:#314158;font-size:14px;font-weight:400;">https://test.game.onstove.com/</td>
      <td style="padding:12px;vertical-align:top;color:#314158;font-size:14px;font-weight:400;">URL to redirect to after login (URL-encoded). <code>xxxx.onstove.com</code> domain only allowed</td>
    </tr>
  </tbody>
</table>

<br />

**Request Format Example**

https://accounts.onstove.com/login ?inflow_path={INFLOW_PATH} &game_no={GAME_NO} &redirect_url={REDIRECT_URL}


<div style="font-size:1.0em;font-weight:bold;margin:24px 0 12px;">Issued Cookies</div>

<p style="color:#314158;font-family:'Spoqa Han Sans Neo';font-size:16px;font-weight:400;line-height:26px;letter-spacing:-0.48px;">Once login is complete, an authentication cookie is set. The web service identifies the login status using <code>SUAT</code>. In addition to SUAT, various cookies are delivered depending on whether the user is logged in or not.</p>

<table style="width:100%;table-layout:fixed;border-collapse:collapse;border-top:1px solid rgba(0,0,0,0.08);border-bottom:1px solid rgba(0,0,0,0.08);">
  <thead>
    <tr>
      <th style="padding:12px;text-align:left;font-weight:normal;color:#314158;border-bottom:1px solid rgba(0,0,0,0.08);background-color:#F8FAFC;width:26%;">Cookie</th>
      <th style="padding:12px;text-align:left;font-weight:normal;color:#314158;border-bottom:1px solid rgba(0,0,0,0.08);background-color:#F8FAFC;">Description</th>
    </tr>
  </thead>
  <tbody>
    <tr>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:500;"><code>SUAT</code></td>
      <td style="padding:12px;vertical-align:top;border-bottom:1px solid rgba(0,0,0,0.08);color:#314158;font-size:14px;font-weight:400;">STOVE User Access Token. Access Token that identifies an authenticated user</td>
    </tr>
    <tr>
      <td style="padding:12px;vertical-align:top;color:#314158;font-size:14px;font-weight:500;">Additional cookies before/after login</td>
      <td style="padding:12px;vertical-align:top;color:#314158;font-size:14px;font-weight:400;">Additional information cookies such as language, country, regulation, and timezone are also issued. Refer to the table below</td>
    </tr>
  </tbody>
</table>

<br />

<details style="margin:12px 0 0;border:1px solid #e3e6ea;border-radius:8px;overflow:hidden;" markdown="1">
<summary style="cursor:pointer;list-style:none;padding:14px 18px;background-color:#FAFAFA;font-size:16px;font-weight:600;color:#16181d;">Cookie information before login<span style="font-size:13px;font-weight:500;color:#8a9099;margin-left:8px;">COVERAGES · LOCALE · NNTO, etc.</span></summary>

<div style="padding:16px 18px 4px;" markdown="1">

| Cookie | Example | Description |
|---|---|---|
| **COVERAGES** | `de, en, es, fr, id, ja, ko, pt, th, vi, zh, zh-tw` (URL Encoding) | GDS Coverages information. Used to display the list of languages that can be changed in the GNB (`vi`, `zh`, `id` are not supported by Onstove, Header-only cookies) |
| **LOCALE** | `KO` | Language code set on the Onstove webpage. If it is the first visit or no previous setting exists, it is set to the browser language code |
| **NNTO** | `KR` | Stores the access country code before login, and the registration country code after login |
| **PRM** | `KO` | Stores the language code set in the browser |
| **REGULATION** | `KOREA` | Stores GDS country-specific regulation information |
| **TZ** | `Asia/Seoul` | Stores GDS Timezone information |
| **TZ_OFFSET** | `540` | Stores GDS UTC Offset information |
| **dvc** | `pc`, `m` | Access device information (`pc`: PC, `m`: Mobile) |

</div>
</details>

<details style="margin:12px 0 0;border:1px solid #e3e6ea;border-radius:8px;overflow:hidden;" markdown="1">
<summary style="cursor:pointer;list-style:none;padding:14px 18px;background-color:#FAFAFA;font-size:16px;font-weight:600;color:#16181d;">Cookie information after login<span style="font-size:13px;font-weight:500;color:#8a9099;margin-left:8px;">SUAT · HD · PLD · SIGN · RFT, etc.</span></summary>

<div style="padding:16px 18px 4px;" markdown="1">

| Cookie | Example | Description |
|---|---|---|
| **SUAT** | `Access Token` | STOVE User Access Token. Access Token that identifies an authenticated user |
| **HD** | `eyJhbGciOiJIUzI1NiJ9` | Header area of the JWT Access Token (`.` first string separated by) |
| **PLD** | `eyJhcHBsaWNhdGlvbl9ubyI6...` | Payload area of the JWT Access Token (`.` second string separated by) |
| **SIGN** | `cbzoplX31qyd9iyCDEd0...` | Signature area of the JWT Access Token (`.` third string separated by) |
| **RFT** | `eyJhbGciOiJIUzI1NiJ9...` | JWT Refresh Token |
| **FOREVER** | `Y`, `N` | Keep me logged in (`Y`: Keep, `N`: Do not keep) |
| **LTC** | `0` | Login error code (loginErrorCode) |
| **LTN** | `0` | Whether a login error occurred (isUsed) |
| **LTU** | `""` | Number of login attempts (loginTryNum). CAPTCHA after 5 failures, blocked after 10 failures |
| **n_uid** | `2744ffd704f574a0...` | Cookie for managing Third-party Access Token or State information |
| **page_uid** | `6da4bd9920526f15...` | Cookie for anti-macro during STOVE login |

</div>
</details>

#### Troubleshooting

| Situation | Cause | Action |
|---|---|---|
| Login page does not open | Missing required parameters (<code>game_no</code>·<code>inflow_path</code>·<code>redirect_url</code>) | Include all three parameters and URL-encode the <code>redirect_url</code>. |
| Redirect failed after login | <code>redirect_url</code> is not an allowed domain | Specify the address within the <code>xxxx.onstove.com</code> domain scope. |
| Authentication cookie not found | Domain mismatch or SSL not configured | Check the service domain/SSL configuration and contact the technical PM. |
| Inflow path not aggregated | <code>inflow_path</code> not issued or entered incorrectly | Provide the value issued by the technical PM in uppercase exactly. |

#### Sample Code

<p style="color:#314158;font-family:'Spoqa Han Sans Neo';font-size:16px;font-weight:400;line-height:26px;letter-spacing:-0.48px;">This is an example of generating and calling a STOVE login page URL by specifying parameters. Please apply the domain according to your environment.</p>

::dc-tabs
:::dc-tab-item{label="JavaScript"}
```javascript
// 스토브 로그인 페이지 URL 생성 및 호출
function openStoveLogin({ gameNo, inflowPath, redirectUrl }) {
    const base = "https://accounts.onstove.com/login"; // 환경별 적용 필요
    const url = new URL(base);
    url.searchParams.set("inflow_path", inflowPath); // 대문자
    url.searchParams.set("game_no", gameNo);
    url.searchParams.set("redirect_url", redirectUrl); // URLSearchParams가 인코딩 처리
    window.location.href = url.toString();
}

openStoveLogin({
    gameNo: "45",
    inflowPath: "STOVE_GAMEID",
    redirectUrl: "https://test.game.onstove.com/"
});

::: ::

Frequently Asked Questions

Q. Should I choose the GNB method or the login URL method?

A. We recommend the GNB method if you want to provide common UI elements such as sign-up, language, theme, and game navigation in addition to login. If you only want to integrate the login flow without common UI elements, you can use the login URL method to call the STOVE login page directly.

Q. What domain should I use to use STOVE authentication?

A. The web service being integrated must use an onstove.com series domain (e.g., xxx.game.onstove.com). If you are configuring it with external infrastructure, an SSL certificate is required, and domain connection/issuance is handled through the publishing technical representative (Technical PM).

Q. How is the GNB display language determined?

A. It is determined in the following order: URL path language → LOCALE cookie → browser language → service default language. If a valid language is not found in the previous step, it moves to the next step, and the final fallback for the entire web service is English. The GNB operates on the premise of a page refresh when the language is changed.

Q. Can I customize the GNB menu to fit my service?

A. You can only expand it within the designated custom area (customMenuArea). You can disable the default menu (widget.stoveMenu.active=false) and receive the mounted / menu-mounted events sent by the GNB to render the service menu directly. Customization is not supported outside of the custom area.

Q. What GNB options can be changed at runtime?

A. You can only change serviceTitle and widget.stoveMenu at runtime using updateOptions() of the instance returned by mount(). Other options are ignored, so they must be specified at the initial mount() point.

Q. How do I check the login result in the login URL method?

A. When the login is complete, it redirects to the redirect_url and an authentication cookie is set. The web service checks the login status using the SUAT (Web Access Token) in the response cookie. In addition to the SUAT, additional cookies such as language, country, and regulations are also delivered.

Q. Are there any restrictions on the redirect_url?

A. The redirect_url must be xxxx.onstove.comIt is limited to pages that can be used as domains. The target page must be verified by the publishing technical manager before integration, and firewall settings for communication between the game server and the STOVE API server must be completed in advance.

Q. How do I verify the SUAT issued after login?

A. The issued SUAT must be verified on the server side. For cache optimization to reduce repeated verification calls, please refer to the [웹 서비스 세션 최적화](/docs/stove/guide/session) guide.

Web Service Login Integration

Understanding

Integration Methods

Application Environment

Components

Operating Principle

Integration Guide

Prerequisites

Domain Information by Environment

Development

GNB Method

Prerequisites

Development Flow

Troubleshooting

Sample Code

Prerequisites

Development Flow

Frequently Asked Questions
